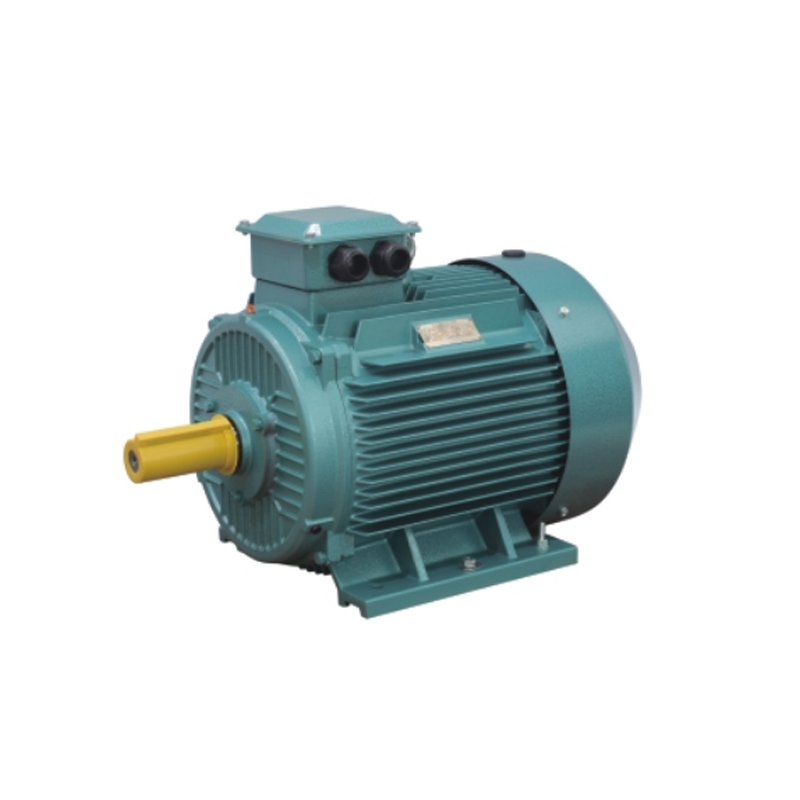

采用新材料、新工藝和優化設計而制造的全封閉自扇冷鼠籠式三相異步電動機，是高效節能型電動機。電動機具有起動轉矩大、噪音低、振動小等特點，同時具有效率高、防護等級高、溫升裕度大，運行安全可靠等優點，節能效果明顯。可用于驅動機床、風機、水泵、壓縮機、攪拌機、包裝機械、建筑機械等各類機械傳動設備。廣泛適用于工業、農業、國防、化工、石油、運輸、食品、醫藥等各個領域。
本系列電機的效率指標可滿足GB18613-2020《電動機能效限定值及能效等級》中的2級，即IEC60034-30-1的1E4。
產品相關參數：
防護等級：1P55
冷卻方式：1C411
絕緣等級：F級
額定電壓：380V
額定頻率：50Hz
工作方式：S1（連續工作制）
海拔：不超過1000m
環境溫度：-15℃~+40℃
如需更多信息，請發送電子郵件或撥打我們的熱線電話
| YE4系列電動機技術參數Technical parameters of YE4 series motors | ||||||||||||
| 型號 | 額定功率Output | 滿載時Full Load | 空載噪音NoisedB(A) | 空載振動Vibration(mm/s) | 堵轉轉矩LRT | 最大轉矩BDT | 堵轉電流LRA | 重量weight(kg) | ||||
| Type | (kw) | (HP) | 電流Current(A) | 轉速Speed（r/min） | 效率Eff（%） | 功率因數P.F.(Cosφ) | 額定轉矩RLT | 額定轉矩RLT | 額定電流RLA | |||
| 同步轉速3000r/min(2極)Synchronous Speed3000r/min(2p) | ||||||||||||
| YE4-80M1-2 | 0.75 | 1 | 1.64 | 2870 | 83.5 | 0.83 | 62 | 1.6 | 2.2 | 2.3 | 8.5 | 19 |
| YE4-80M2-2 | 1.1 | 1.5 | 2.36 | 2870 | 85.2 | 0.83 | 62 | 1.6 | 2.2 | 2.3 | 8.5 | 20 |
| YE4-90S-2 | 1.5 | 2 | 3.1 | 2900 | 86.5 | 0.85 | 67 | 1.6 | 2.2 | 2.3 | 9 | 25 |
| YE4-90L-2 | 2.2 | 3 | 4.42 | 2900 | 88 | 0.86 | 67 | 1.6 | 2.2 | 2.3 | 9 | 35 |
| YE4-100L-2 | 3 | 4 | 5.9 | 2900 | 89.1 | 0.87 | 74 | 1.6 | 2.2 | 2.3 | 9.5 | 45 |
| YE4-112M-2 | 4 | 5.5 | 7.7 | 2910 | 90 | 0.88 | 77 | 1.6 | 2.2 | 2.3 | 9.5 | 50 |
| YE4-132S1-2 | 5.5 | 7.5 | 10.4 | 2940 | 90.9 | 0.88 | 79 | 1.6 | 2 | 2.3 | 9.5 | 85 |
| YE4-132S2-2 | 7.5 | 10 | 14 | 2940 | 91.7 | 0.89 | 79 | 1.6 | 2 | 2.3 | 9.5 | 95 |
| YE4-160M1-2 | 11 | 15 | 20.3 | 2950 | 92.6 | 0.89 | 81 | 2.2 | 2 | 2.3 | 9.5 | 135 |
| YE4-160M2-2 | 15 | 20 | 27.4 | 2950 | 93.3 | 0.89 | 81 | 2.2 | 2 | 2.3 | 9.5 | 150 |
| YE4-160L-2 | 18.5 | 25 | 33.7 | 2950 | 93.7 | 0.89 | 81 | 2.2 | 2 | 2.3 | 9.5 | 170 |
| YE4-180M-2 | 22 | 30 | 40 | 2960 | 94 | 0.89 | 83 | 2.2 | 2 | 2.3 | 9.5 | 245 |
| YE4-200L1-2 | 30 | 40 | 54.2 | 2970 | 94.5 | 0.89 | 84 | 2.2 | 2 | 2.3 | 9 | 330 |
| YE4-200L2-2 | 37 | 50 | 66.6 | 2970 | 94.8 | 0.89 | 84 | 2.2 | 2 | 2.3 | 9 | 345 |
| YE4-225M-2 | 45 | 60 | 80.9 | 2970 | 95 | 0.89 | 86 | 2.2 | 2 | 2.3 | 9 | 440 |
| YE4-250M-2 | 55 | 75 | 98.5 | 2975 | 95.3 | 0.89 | 89 | 2.2 | 2 | 2.3 | 9 | 550 |
| YE4-280S-2 | 75 | 100 | 134 | 2980 | 95.6 | 0.89 | 91 | 2.2 | 1.8 | 2.3 | 8.5 | 685 |
| YE4-280M-2 | 90 | 125 | 160 | 2980 | 95.8 | 0.89 | 91 | 2.2 | 1.8 | 2.3 | 8.5 | 735 |
| YE4-315S-2 | 110 | 150 | 196 | 2980 | 96 | 0.89 | 92 | 2.8 | 1.8 | 2.3 | 8.5 | 1300 |
| YE4-315M-2 | 132 | 180 | 234 | 2980 | 96.2 | 0.89 | 92 | 2.8 | 1.8 | 2.3 | 8.5 | 1370 |
| YE4-315L1-2 | 160 | 220 | 284 | 2980 | 96.3 | 0.89 | 92 | 2.8 | 1.8 | 2.2 | 8.5 | 1465 |
| YE4-315L2-2 | 185 | 250 | 328 | 2980 | 96.4 | 0.89 | 92 | 2.8 | 1.8 | 2.2 | 8.5 | 1545 |
| YE4-315L2-2 | 200 | 270 | 354 | 2980 | 96.5 | 0.89 | 92 | 2.8 | 1.8 | 2.2 | 8.5 | 1560 |
| YE4-355M1-2 | 220 | 300 | 381 | 2985 | 96.5 | 0.91 | 97 | 2.8 | 1.6 | 2.2 | 8.5 | 1720 |
| YE4-355M2-2 | 250 | 340 | 433 | 2985 | 96.5 | 0.91 | 97 | 2.8 | 1.6 | 2.2 | 8.5 | 1830 |
| YE4-355L1-2 | 280 | 380 | 484 | 2985 | 96.5 | 0.91 | 97 | 2.8 | 1.6 | 2.2 | 8.5 | 1960 |
| YE4-355L2-2 | 315 | 430 | 545 | 2985 | 96.5 | 0.91 | 97 | 2.8 | 1.6 | 2.2 | 8.5 | 2160 |
| YE4-3551-2 | 355 | 475 | 621 | 2985 | 96.5 | 0.9 | 97 | 2.8 | 0.9 | 1.8 | 8.6 | 2280 |
| YE4-3552-2 | 375 | 500 | 656 | 2985 | 96.5 | 0.9 | 97 | 2.8 | 0.9 | 1.8 | 8.6 | 2320 |
| YE4-3552-2 | 400 | 535 | 700 | 2985 | 96.5 | 0.9 | 97 | 2.8 | 0.9 | 1.8 | 8.6 | 2360 |
| YE4-3553-2 | 450 | 600 | 787 | 2985 | 96.5 | 0.9 | 97 | 2.8 | 0.8 | 1.8 | 8.6 | 2440 |
| 同步轉速1500r/min(4極)Synchronous Speed1500r/min(4P) | ||||||||||||
| YE4-80M1-4 | 0.55 | 0.75 | 1.33 | 1435 | 83.9 | 0.75 | 56 | 1.6 | 2.3 | 2.3 | 8.5 | 18 |
| YE4-80M2-4 | 0.75 | 1 | 1.8 | 1435 | 85.7 | 0.74 | 56 | 1.6 | 2.3 | 2.3 | 8.5 | 20 |
| YE4-90S4 | 1.1 | 1.5 | 2.56 | 1440 | 872 | 0.75 | 59 | 1.6 | 2.3 | 2.3 | 8.5 | 27 |
| YE4-90L-4 | 15 | 2 | 3.4 | 1440 | 88.2 | 0.76 | 59 | 1.6 | 2.3 | 2.3 | 9 | 30 |
| YE4-100L1-4 | 2.2 | 3 | 4.73 | 1460 | 89.5 | 0.79 | 64 | 1.6 | 2.3 | 2.3 | 9 | 43 |
| YE4-100L2-4 | 3 | 4 | 6.3 | 1460 | 90.4 | 0.8 | 64 | 1.6 | 2.3 | 2.3 | 9.5 | 50 |
| YE4-112M-4 | 4 | 5.5 | 8.3 | 1460 | 91.1 | 8 | 65 | 1.6 | 2.3 | 2.3 | 9.5 | 55 |
| YE4-132S-4 | 5.5 | 7.5 | 11.4 | 1470 | 91.9 | 0.8 | 71 | 1.6 | 2 | 2.3 | 9.5 | 100 |
| YE4-132M-4 | 7.5 | 10 | 15.2 | 1470 | 92.6 | 0.81 | 71 | 1.6 | 2 | 2.3 | 9.5 | 115 |
| YE4-160M-4 | 11 | 15 | 21.6 | 1475 | 93.3 | 0.83 | 73 | 2.2 | 2 | 2.3 | 9.5 | 150 |
| YE4-160L-4 | 15 | 20 | 28.9 | 1475 | 93.9 | 0.84 | 73 | 22 | 2 | 2.3 | 9.5 | 175 |
| YE4-180M-4 | 18.5 | 25 | 35.1 | 1480 | 94.2 | 0.85 | 76 | 2.2 | 2 | 2.3 | 9.5 | 245 |
| YE4-180L-4 | 22 | 30 | 41.6 | 1480 | 94.5 | 0.85 | 76 | 2.2 | 2 | 2.3 | 9.5 | 260 |
| YE4-200L-4 | 30 | 40 | 56.5 | 1485 | 94.9 | 0.85 | 76 | 2.2 | 2 | 2.3 | 9 | 370 |
| YE4-225S-4 | 37 | 50 | 69.5 | 1485 | 95.2 | 0.85 | 78 | 2.2 | 2 | 2.3 | 9 | 410 |
| YE4-225M-4 | 45 | 60 | 84.3 | 1485 | 95.4 | 0.85 | 78 | 2.2 | 2 | 2.3 | 9 | 435 |
| YE4-250M-4 | 55 | 75 | 102 | 1485 | 95.7 | 0.86 | 79 | 2.2 | 2 | 2.3 | 9 | 555 |
| YE4-280S-4 | 75 | 100 | 136 | 1488 | 96 | 0.87 | 80 | 2.2 | 2 | 2.3 | 8.5 | 720 |
| YE4-280M-4 | 90 | 125 | 162 | 1488 | 96.1 | 0.88 | 80 | 2.2 | 2 | 2.3 | 8.5 | 790 |
| YE4-315S-4 | 110 | 150 | 195 | 1490 | 96.3 | 0.89 | 88 | 2.8 | 1.8 | 2.2 | 8.5 | 1320 |
| YE4-315M-4 | 132 | 180 | 234 | 1490 | 96.4 | 0.89 | 88 | 2.8 | 1.8 | 2.2 | 8.5 | 1390 |
| YE4-315L1-4 | 160 | 220 | 280 | 1490 | 96.6 | 9 | 88 | 2.8 | 1.8 | 2.2 | 8.5 | 1460 |
| YE4-315L2-4 | 185 | 250 | 323 | 1490 | 96.7 | 9 | 88 | 2.8 | 1.8 | 22 | 8.5 | 1520 |
| YE4-315L2-4 | 200 | 270 | 349 | 1490 | 96.7 | 0.9 | 88 | 2.8 | 1.8 | 22 | 8.5 | 1545 |
| YE4-355M1-4 | 220 | 300 | 384 | 1490 | 96.7 | 0.9 | 92 | 2.8 | 1.8 | 22 | 8.5 | 1750 |
| YE4-355M2-4 | 250 | 340 | 436 | 1490 | 96.7 | 0.9 | 92 | 2.8 | 1.8 | 2.2 | 8.5 | 1840 |
| YE4-355L1-4 | 280 | 380 | 489 | 1490 | 96.7 | 0.9 | 92 | 2.8 | 1.8 | 22 | 8.5 | 1930 |
| YE4-355L2-4 | 315 | 430 | 550 | 1490 | 96.7 | 0.9 | 92 | 2.8 | 1.8 | 2.2 | 8.5 | 2280 |
| YE4-3551-4 | 355 | 475 | 634 | 1490 | 96.7 | 0.88 | 92 | 2.8 | 0.9 | 1.8 | 8.5 | 2400 |
| YE4-3552-4 | 375 | 500 | 670 | 1490 | 96.7 | 0.88 | 92 | 2.8 | 0.9 | 18 | 8.5 | 2440 |
| YE4-3552-4 | 400 | 535 | 714 | 1490 | 96.7 | 0.88 | 92 | 2.8 | 0.9 | 18 | 8.5 | 2480 |
| YE4-3553-4 | 450 | 600 | 803 | 1490 | 96.7 | 0.88 | 92 | 2.8 | 0.8 | 1.8 | 8.5 | 2560 |
| 同步轉速1000r/min(6極)Synchronous Speed1000r/min(6P) | ||||||||||||
| YE4-90S-6 | 0.75 | 1 | 1.97 | 950 | 82.7 | 0.7 | 57 | 1.6 | 2.1 | 2.1 | 7.5 | 25 |
| YE4-90L6 | 1.1 | 1.5 | 2.83 | 950 | 84.5 | 0.7 | 57 | 1.6 | 2.1 | 2.1 | 7.5 | 30 |
| YE4-100L-6 | 15 | 2 | 3.74 | 955 | 85.9 | 0.71 | 61 | 1.6 | 2.1 | 2.1 | 7.5 | 40 |
| YE4-112M-6 | 2.2 | 3 | 5.4 | 960 | 87.4 | 0.71 | 65 | 1.6 | 2.1 | 2.1 | 7.5 | 46 |
| YE4-132S-6 | 3 | 4 | 72 | 970 | 88.6 | 0.71 | 69 | 1.6 | 2 | 2.1 | 7.5 | 85 |
| YE4-132M1-6 | 4 | 5.5 | 9.4 | 970 | 89.5 | 0.72 | 69 | 1.6 | 2 | 2.1 | 8 | 95 |
| YE4-132M2-6 | 5.5 | 7.5 | 12.8 | 970 | 90.5 | 0.72 | 69 | 1.6 | 2 | 2.1 | 8 | 110 |
| YE4-160M-6 | 7.5 | 10 | 16.4 | 975 | 91.3 | 0.76 | 73 | 2.2 | 2 | 2.1 | 8 | 150 |
| YE4-160L-6 | 11 | 15 | 23.5 | 975 | 92.3 | 0.77 | 73 | 2.2 | 2 | 2.1 | 8.5 | 170 |
| YE4-180L-6 | 15 | 20 | 30.7 | 980 | 92.9 | 0.8 | 73 | 2.2 | 2 | 2.1 | 8.5 | 205 |
| YE4-200L1-6 | 18.5 | 25 | 37.6 | 985 | 93.4 | 0.8 | 73 | 2.2 | 2 | 2.1 | 8.5 | 310 |
| YE4-200L2-6 | 22 | 30 | 44 | 985 | 93.7 | 0.81 | 73 | 2.2 | 2 | 2.1 | 8.5 | 330 |
| YE4-225M-6 | 30 | 40 | 59 | 985 | 94.2 | 0.82 | 74 | 2.2 | 2 | 2.1 | 8.3 | 400 |
| YE4-250M-6 | 37 | 50 | 71.7 | 985 | 94.5 | 0.83 | 76 | 2.2 | 2 | 2.1 | 8.3 | 480 |
| YE4-280S-6 | 45 | 60 | 86.9 | 990 | 94.8 | 0.83 | 78 | 2.2 | 2 | 2 | 8.5 | 705 |
| YE4-280M-6 | 55 | 75 | 105 | 990 | 95.1 | 0.84 | 78 | 2.2 | 2 | 2 | 8.5 | 765 |
| YE4-315S-6 | 75 | 100 | 142 | 990 | 95.4 | 0.84 | 83 | 2.8 | 1.6 | 2 | 8 | 1265 |
| YE4-315M-6 | 90 | 125 | 168 | 990 | 95.6 | 0.85 | 83 | 2.8 | 1.6 | 2 | 8 | 1335 |
| YE4-315L1-6 | 110 | 150 | 205 | 990 | 95.8 | 0.85 | 83 | 2.8 | 1.6 | 2 | 8 | 1465 |
| YE4-315L2-6 | 132 | 180 | 243 | 990 | 96 | 0.86 | 83 | 2.8 | 1.6 | 2 | 8 | 1525 |
| YE4-355M1-6 | 160 | 220 | 294 | 990 | 96.2 | 0.86 | 85 | 2.8 | 1.6 | 2 | 8 | 1680 |
| YE4-355M2-6 | 185 | 250 | 339 | 990 | 96.3 | 0.86 | 85 | 2.8 | 1.6 | 2 | 8 | 1780 |
| YE4-355M2-6 | 200 | 270 | 367 | 990 | 96.3 | 0.86 | 85 | 2.8 | 1.6 | 2 | 8 | 1810 |
| YE4-355L1-6 | 220 | 300 | 403 | 990 | 96.4 | 0.86 | 85 | 2.8 | 1.6 | 2 | 8 | 1960 |
| YE4-355L2-6 | 250 | 340 | 458 | 990 | 96.5 | 0.86 | 85 | 2.8 | 1.6 | 2 | 8 | 2250 |
| YE4-3551-6 | 280 | 380 | 537 | 990 | 96.6 | 0.82 | 91 | 2.8 | 0.9 | 1.8 | 7.9 | 2440 |
| YE4-3552-6 | 315 | 430 | 604 | 990 | 96.6 | 0.82 | 91 | 2.8 | 0.9 | 1.8 | 7.9 | 2490 |
| YE4-3553-6 | 355 | 475 | 681 | 990 | 96.6 | 0.82 | 91 | 2.8 | 0.9 | 1.8 | 7.9 | 2550 |
| 同同步轉速750r/min(8極)Synchronous Speed750r/min(8P) | ||||||||||||
| YE4-100L1-8 | 0.75 | 1 | 2.2 | 700 | 78.4 | 0.66 | 59 | 1.6 | 2 | 2 | 7 | 45 |
| YE4-100L2-8 | 1.1 | 1.5 | 3.09 | 700 | 80.8 | 0.67 | 59 | 1.6 | 2 | 2 | 7 | 47 |
| YE4-112M-8 | 1.5 | 2 | 4 | 705 | 82.6 | 0.69 | 61 | 1.6 | 2 | 2 | 7 | 50 |
| YE4-132S-8 | 2.2 | 3 | 5.7 | 715 | 84.5 | 0.7 | 64 | 1.6 | 1.8 | 2 | 7.5 | 65 |
| YE4-132M-8 | 3 | 4 | 7.6 | 715 | 85.9 | 0.7 | 64 | 1.6 | 1.8 | 2 | 7.8 | 75 |
| YE4-160M1-8 | 4 | 5.5 | 9.8 | 720 | 87.1 | 0.71 | 68 | 2.2 | 1.8 | 2 | 7.9 | 105 |
| YE4-160M2-8 | 5.5 | 7.5 | 13.1 | 720 | 88.3 | 0.72 | 68 | 2.2 | 1.8 | 2 | 8.1 | 125 |
| YE4-160L-8 | 7.5 | 10 | 17.2 | 720 | 89.3 | 0.74 | 68 | 2.2 | 1.8 | 2 | 7.8 | 135 |
| YE4-180L-8 | 11 | 15 | 25 | 725 | 90.4 | 0.74 | 70 | 2.2 | 1.8 | 2 | 7.9 | 200 |
| YE4-200L-8 | 15 | 20 | 33.3 | 730 | 91.2 | 0.75 | 73 | 2.2 | 1.8 | 2 | 8 | 240 |
| YE4-225S-8 | 18.5 | 25 | 40.9 | 730 | 91.7 | 0.75 | 73 | 2.2 | 1.8 | 2 | 8.1 | 280 |
| YE4-225M-8 | 22 | 30 | 47.8 | 730 | 92.1 | 0.76 | 73 | 2.2 | 1.8 | 2 | 8.3 | 310 |
| YE4-250M-8 | 30 | 40 | 63.9 | 735 | 92.7 | 0.77 | 75 | 2.2 | 1.8 | 2 | 7.9 | 400 |
| YE4-280S-8 | 37 | 50 | 77.4 | 735 | 93.1 | 0.78 | 76 | 2.2 | 1.8 | 2 | 7.9 | 530 |
| Ye4-280M-8 | 45 | 60 | 93.9 | 735 | 93.4 | 0.78 | 76 | 2.2 | 1.8 | 2 | 7.9 | 590 |
| YE4-315S-8 | 55 | 75 | 111 | 740 | 93.7 | 0.8 | 82 | 2.8 | 1.6 | 2 | 8.2 | 790 |
| YE4-315M-8 | 75 | 100 | 151 | 740 | 94.2 | 0.8 | 82 | 2.8 | 1.6 | 2 | 7.6 | 1100 |
| YE4-315L1-8 | 90 | 125 | 179 | 740 | 94.4 | 0.81 | 82 | 2.8 | 1.6 | 2 | 7.7 | 1160 |
| YE4-315L2-8 | 110 | 150 | 218 | 740 | 94.7 | 0.81 | 82 | 2.8 | 1.6 | 2 | 7.7 | 1260 |
| YE4-355M1-8 | 132 | 180 | 261 | 743 | 94.9 | 0.81 | 89 | 2.8 | 1.6 | 2 | 7.7 | 1760 |
| YE4-355M2-8 | 160 | 220 | 312 | 743 | 95.1 | 0.82 | 89 | 2.8 | 1.6 | 2 | 7.7 | 1850 |
| YE4-355L1-8 | 185 | 250 | 360 | 743 | 95.3 | 0.82 | 89 | 2.8 | 1.6 | 2 | 7.8 | 1990 |
| YE4-355L2-8 | 200 | 270 | 388 | 743 | 95.4 | 0.82 | 89 | 2.8 | 1.6 | 2 | 7.8 | 2380 |
| YE4-3551-8 | 220 | 300 | 438 | 740 | 95.4 | 0.8 | 89 | 2.8 | 1.1 | 1.8 | 7.6 | 2430 |
| YE4-3552-8 | 250 | 340 | 498 | 740 | 95.4 | 0.8 | 89 | 2.8 | 1.1 | 1.8 | 7.6 | 2500 |
| YE4-3553-8 | 280 | 380 | 557 | 740 | 95.4 | 0.8 | 89 | 2.8 | 0.9 | 1.8 | 7.6 | 2980 |
| YE4-3553-8 | 315 | 430 | 627 | 740 | 95.4 | 0.8 | 89 | 2.8 | 0.9 | 1.8 | 7.6 | 3100 |
