H80-90

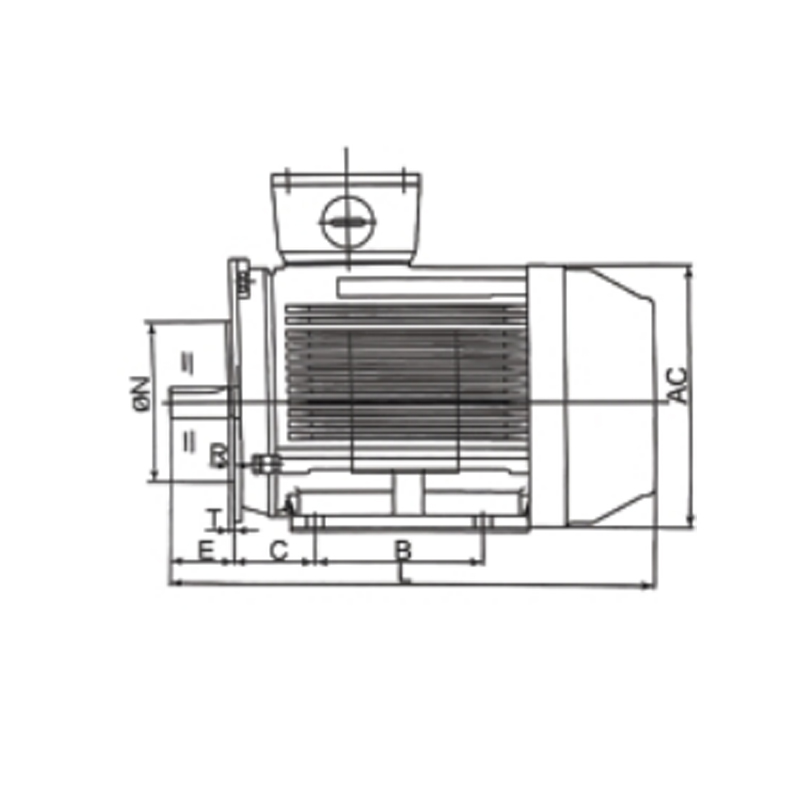

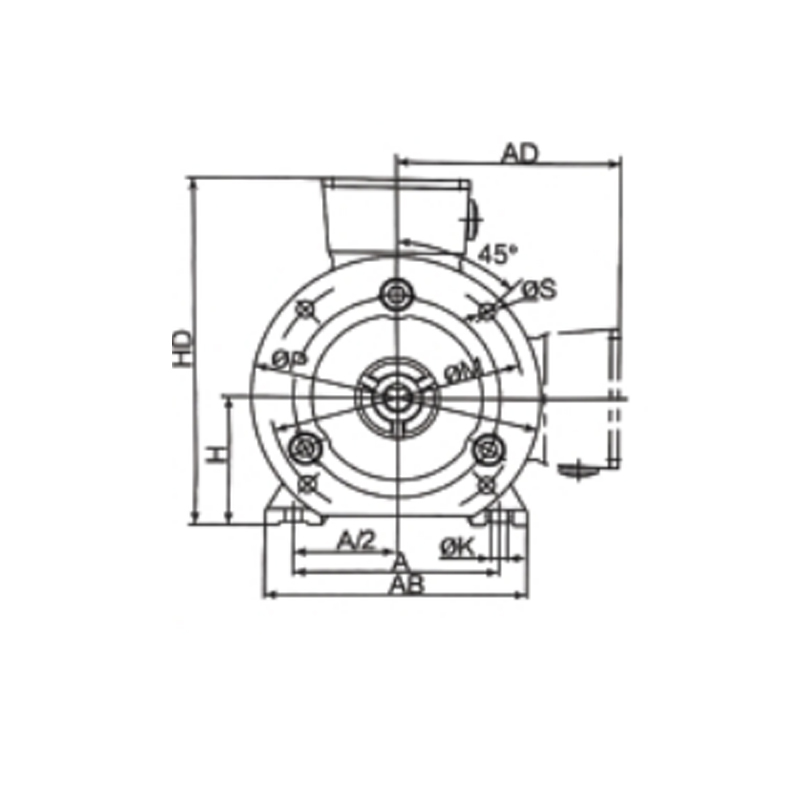

Frame with foot end shield with f1ange(B35)

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

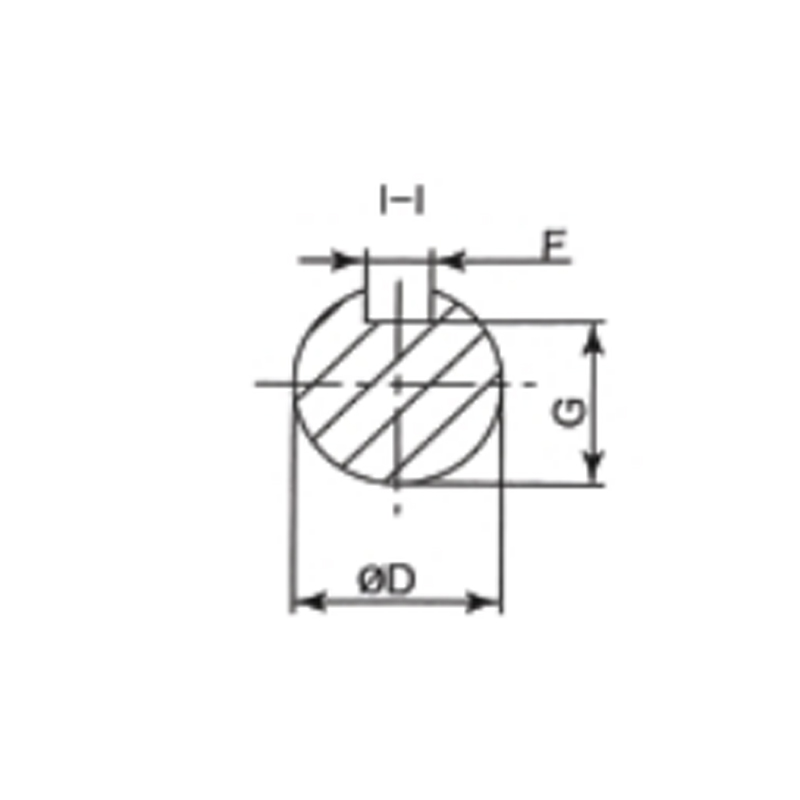

Frame	Ploes	Mounting dimension(mm)																	Overall dimensions(mm)
		A	A/2	B	C	H	K	D	E	F	G	M	N	P	R	S	T	Holes	AB	AC	AD	HD	L
		A	A/2	B	C	H	K	D	E	F	G	M	N	P	R	S	T	Holes	AB	AC	AD	HD	L
80M	2.4	125	62.5	100	50	80	10	19	40	6	15.5	165	175	200	0	12	3.5	4	165	175	145	220	305
90S	2.4.6	140	70	100	56	90	10	24	50	8	20	165	205	200		12	3.5	4	180	205	170	265	395
90L	2.4.6	140	70	125	56	90	10	24	50	8	20	165	205	200		12	3.5	4	180	205	170	265	425
100L	2.4.6.8	160	80	140	63	100	12	28	60	8	24	215	215	250		15	4	4	205	215	180	270	435
112M	2.4.6.8	190	95	140	70	112	12	28	60	8	24	215	255	250		15	4	4	230	255	200	310	475
132S	2.4.6.8	216	108	140	89	132	12	38	80	10	33	265	310	300		15	4	4	270	310	230	365	535
132M	2.4.6.8	216	108	178	89	132	12	38	80	10	33	265	310	300		15	4	4	270	310	230	365	550
160M	2.4.6.8	254	127	210	108	160	14.5	42	110	12	37	300	250	350		19	5	4	320	340	260	425	730
160L	2.4.6.8	254	127	254	108	160	14.5	42	110	12	37	300	250	350		19	5	4	320	340	260	425	760
180M	2.4	279	139.5	241	121	180	14.5	48	110	14	42.5	300	250	350		19	5	4	355	390	285	460	805
180L	4.6.8	279	139.5	279	121	180	14.5	48	110	14	42.5	300	250	350		19	5	4	355	390	285	460	835
200L	2.4.6.8	318	159	305	133	200	18.5	55	110	16	49	350	300	400		19	5	4	395	445	320	520	890
225S	4.8	356	178	286	149	225	18.5	60	140	18	53	400	350	450		19	5	8	435	495	350	575	865
225M	2	356	178	311	149	225	18.5	55	110	16	49	400	350	450		19	5	8	435	495	350	575	865
225M	4.6.8	356	178	311	149	225	18.5	60	140	18	53	400	350	450		19	5	8	435	495	350	575	895
250M	2	406	203	349	168	250	24	60	140	18	53	500	450	550		19	5	8	490	550	390	635	995
250M	4.6.8	406	203	349	168	250	24	65	140	18	58	500	450	550		19	5	8	490	550	390	635	995
280S	2	457	228.5	368	190	280	24	65	140	18	58	500	450	550		19	5	8	550	630	435	705	1030
280S	4.6.8	457	228.5	368	190	280	24	75	140	20	67.5	500	450	550		19	5	8	550	630	435	705	1030
280M	2	457	228.5	419	190	280	24	65	140	18	58	500	450	550		19	5	8	550	630	435	705	1080
280M	4.6.8	457	228.5	419	190	280	24	75	140	20	67.5	500	450	550		19	5	8	550	630	435	705	1080
315S	2	508	254	406	216	315	28	65	140	18	58	600	550	660		24	6	8	635	645	530	845	1180
315S	4.6.8	508	254	406	216	315	28	80	170	22	71	600	550	660		24	6	8	635	645	530	845	1290
315M	2	508	254	457	216	315	28	65	140	18	58	600	550	660		24	6	8	635	645	530	845	1210
315M	4.6.8	508	254	457	216	315	28	80	170	22	71	600	550	660		24	6	8	635	645	530	845	1320
315L	2	508	254	508	216	315	28	65	140	18	58	600	550	660		24	6	8	635	645	530	845	1210
315L	4.6.8	508	254	508	216	315	28	80	170	22	71	600	550	660		24	6	8	635	645	530	845	1320
355M	2	610	305	560	254	355	28	75	140	20	67.5	740	680	800		24	6	8	730	710	655	1010	1500
355M	4.6.8	610	305	560	254	355	28	95	170	25	86	740	680	800		24	6	8	730	710	655	1010	1530
355L	2	610	305	630	254	355	28	75	140	20	67.5	740	680	800		24	6	8	730	710	655	1010	1500
355L	4.6.8	610	305	630	254	355	28	95	170	25	86	740	680	800		24	6	8	730	710	655	1010	1530
3551 3552 3553	2	630	315	800	224	355	35	80	170	22	71	840	780	900		24	6	8	760	900	760	1130	1870
	4.6.8	630	315	800	224	355	35	110	210	28	100	840	780	900		24	6	8	760	900	760	1130	1920
	4.6.8	630	315	800	224	355	35	110	210	28	100	840	780	900		24	6	8	760	900	760	1130	1920
